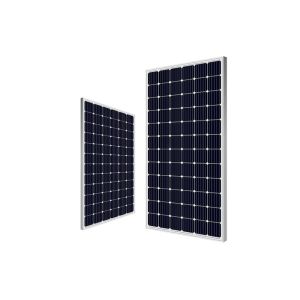

    High Efficiency Monocrystalline Solar Module 36V 340W Monocrystalline Pv Cell

    Ask Lasest Price
    Brand Name : URILIC
    Model Number : 325W, 330W, 335W, 340W
    Certification : CQC, TUV, CE, ROHS, ISO9001:2008
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1000PCS/week
    Delivery Time : 5-15 days
    • Product Details
    • Company Profile

    High Efficiency Monocrystalline Solar Module 36V 340W Monocrystalline Pv Cell

    325W-340W-36V Monocrystalline PV Cells High Efficiency Monocrystalline Solar Cells

    Description:
    The monocrystalline silicon solar panel is a module body in which a single crystal silicon cell is formed in a different string and array. The main advantages of single crystal plates are conversion efficiency and smooth aesthetics. Monocrystalline Solar Panels have been the go-to the choice for many years. They are among the oldest, most efficient and most dependable ways to produce electricity from the sun. Each module is made from a single silicon crystal and it is recognized by their colour, which is typically black or iridescent blue.

    Features:

    1. High efficiency monocrystalline solar power panel.
    2. Outstanding low-light performance.
    3. High transmission tempered glass ensure high quaility solar panel.
    4. Solar cells solar panel with durable anodized aluminum frame.
    5. Efficient protection from frame deformation and water accumulation.
    6. Rugged design to withstand high wind pressure and snow load, easy installation.


    Product Details:

    ModelU325M-24U330M-24U335M-24U340M-24
    Peak Power (W)325±3%330±3%335±3%340±3%
    Open circuit voltage (V)45.845.845.845.8
    Peak Voltage (V)37.537.537.537.5
    peak current (A)8.678.808.939.07
    Short-circuit current (A)9.279.419.569.70
    Cell efficiency19.2%19.5%19.7%20.0%
    Component Efficiency16.75%17.0%17.27%17.52%
    Maximum overcurrent (A)15A
    Maximum system voltage (V)1000V DC
    Rated operating temperature48±2°C
    Working temperature range-40°C- +85°C
    Current temperature coefficient0.1%/°C
    Voltage temperature coefficient-0.37%/°C
    Power Temperature Coefficient0.45%/°C
    Solar Cell156*156*0.19mm
    Number of cells72 pcs
    Size1956*992*40mm
    Weight22.5 kgs
    Surface PackagingLow iron tempered glass/3.2mm
    SealantEthylene Vinyl Acetate (EVA)
    BorderAnodized Aluminum/Silver
    Junction Box Waterproof Level≥IP65
    Pre-wind pressure5400Pa
    Back wind pressure2400Pa
    Maximum hail impact25mm/ 23m/s


    325W-330W-335W-340W-36V solar panel assembly size chart

    325W-340W-36V solar panel assembly size chart

    Our advantage:

    1. High conversion efficiency, high-transmission rate.
    2. Energy saving, environmental-friendly, Safty, No pollution.
    3. Advanced technology, strict quality control system.
    4. Easy installation, safe operation, free maintenance.
    5. 10-year product warranty,12-year warranty at 90% power output,25-year warranty at 80% power output.
    6. Quality in priority, clients the upmost.
    Solar Panel Details Show:

    325W 330W 335W 340W 36V Monocrystalline solar panels Details

    Solar Cell

    High Efficiency PV Cells
    Appearance Consistency
    Color sorting ensure consistent appearance on each module
    Anti-PID

    Frame

    Frame thinkness>18mm

    Oxidation Film>15Pm

    TUV&UL standard sillica gel

    Ability to resist 5400Pa mechanical pressure

    Good anti-corruption performance in seaside environment

    Solar junction box

    PPO material, IP67.
    Quality diode ensures module running safety

    Heat dissipation

    Long service life

    Solar Panels Production Process:

    1. Cell Sorting

    2. Cell Welding

    3. Laminating

    4. EL Test5. Lamination6. Cut Edge
    7. Glue the Borders8. Framing9. Junction Box Fixing
    10. Curing11. Packaging12. Transport

    Solar Panel Application:

    325W 330W 335W 340W 36V solar panels application

    Solar Wind Hybrid System Street Light

    Solar Wind Hybrid

    System Monitoring

    Solar Wind Hybrid System Station

    Solar Panels Station
